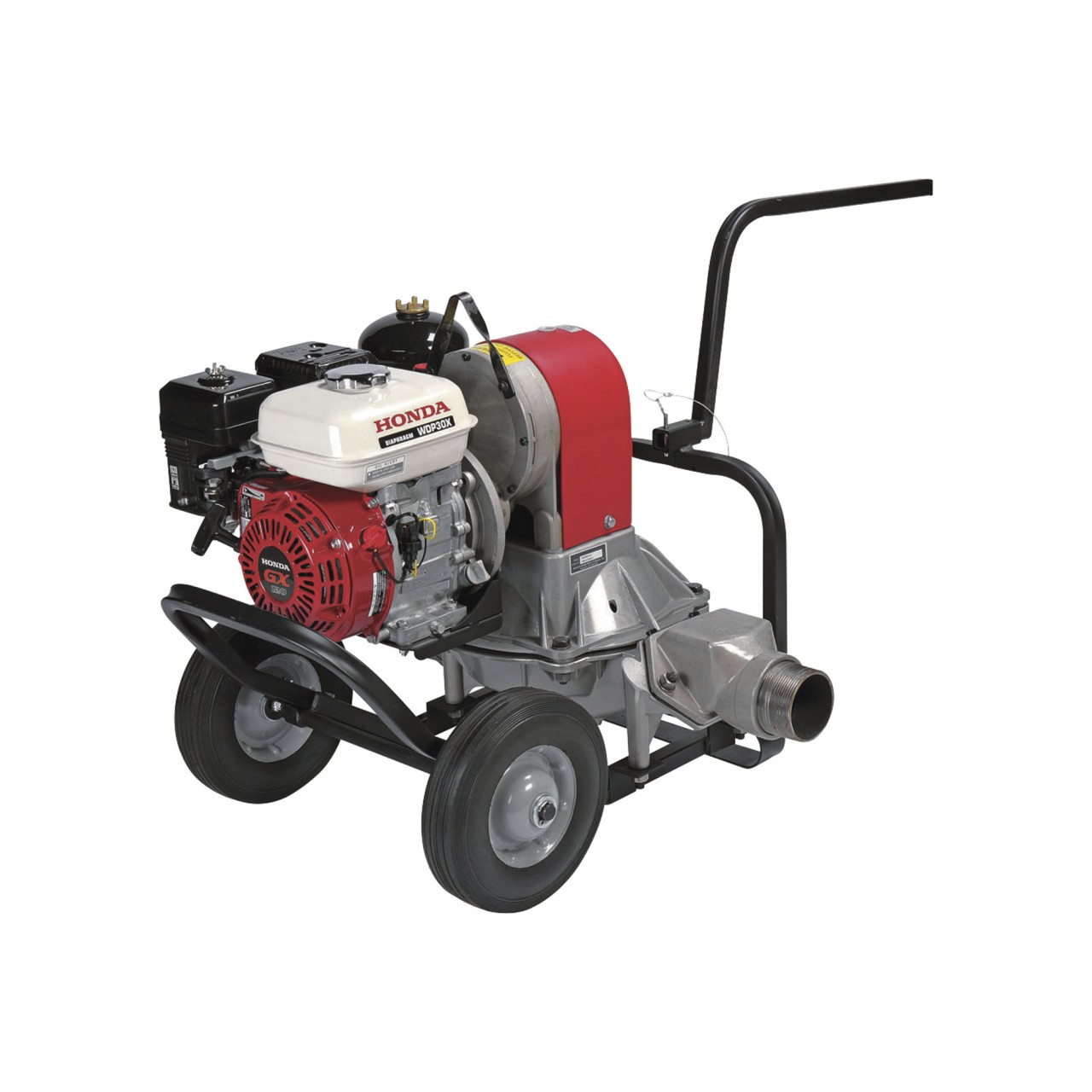

Honda Self-Priming Diaphragm Water Pump with Wheel Kit 4,800 GPH, 3in. Ports, 2.4in. Solids Capacity, 120cc Honda GX120 Engine, Model# WDP30XK2AT

Honda Self-Priming Diaphragm Water Pump with Wheel Kit 4,800 GPH, 3in. Ports, 2.4in. Solids Capacity, 120cc Honda GX120 Engine, Model# WDP30XK2AT

Price:

$652

Brand:

Honda

Condition:

New

Availability:

Ready Stock

Shipping:

Calculated at checkout

Product Description

Powerful 120cc Honda GX120 commercial-grade engine is easy starting and provides ample power for the toughest conditions
3in. ports can easily pass solids up to 2.4in.
Dry run capability is perfect for areas with slow seepage like, work sites where groundwater is slowly seeping in. Special "rock channel" prevents case damage and allows large solids and high amounts of sediment to pass through the pump without harming its components
Spring-protected connecting rod protects the pump against damage
Honda Oil Alert® protects the pump by shutting the engine off when low oil is detected

Product Summary

This Honda Diaphragm Water Pump is a positive displacement pump that can pump thick sludge or water containing large solids. Instead of an impeller and a volute, diaphragm pumps use a neoprene diaphragm. Great for construction, industrial, and agricultural applications.

What's Included

(1) Water pump

Features + Benefits

Powerful 120cc Honda GX120 commercial-grade engine is easy starting and provides ample power for the toughest conditions
3in. ports can easily pass solids up to 2.4in.
Dry run capability is perfect for areas with slow seepage like, work sites where groundwater is slowly seeping in. Special "rock channel" prevents case damage and allows large solids and high amounts of sediment to pass through the pump without harming its components
Spring-protected connecting rod protects the pump against damage
Honda Oil Alert® protects the pump by shutting the engine off when low oil is detected
Wheel kit standard
Die cast aluminum case

Removable priming plug allows suction head to be increased
Dry self-priming for convenient quick starts
Air cushion chamber to reduce pulsation in the suction line
Convenient carrying handles
NPT suction and delivery ports for easy hose connections
Standard 2 3/8in. steel strainer

Key Specs

Item#	109433
Brand	Honda Power Equipment
Manufacturer's Warranty	3 year limited warranty
Ship Weight	168.0 lbs
Fits Hose Dia. (in.)	3
Engine Displacement (cc)	120
Flow (GPH)	4,800
Engine	GX120
Engine Type	OHV
Suction Port (in.)	3

Discharge Port (in.)	3
Max. Suction Lift (ft.)	16 dry, 24 primed
Max. Total Head (ft.)	50
Self-Priming	Yes
Solid Handling (in.)	2.4
Pump Housing	Aluminum
Diaphragm	Neoprene
Low Oil Shutdown	Yes
Dimensions L x W x H (in.)	31 1/2 x 30 1/2 x 25 3/4
