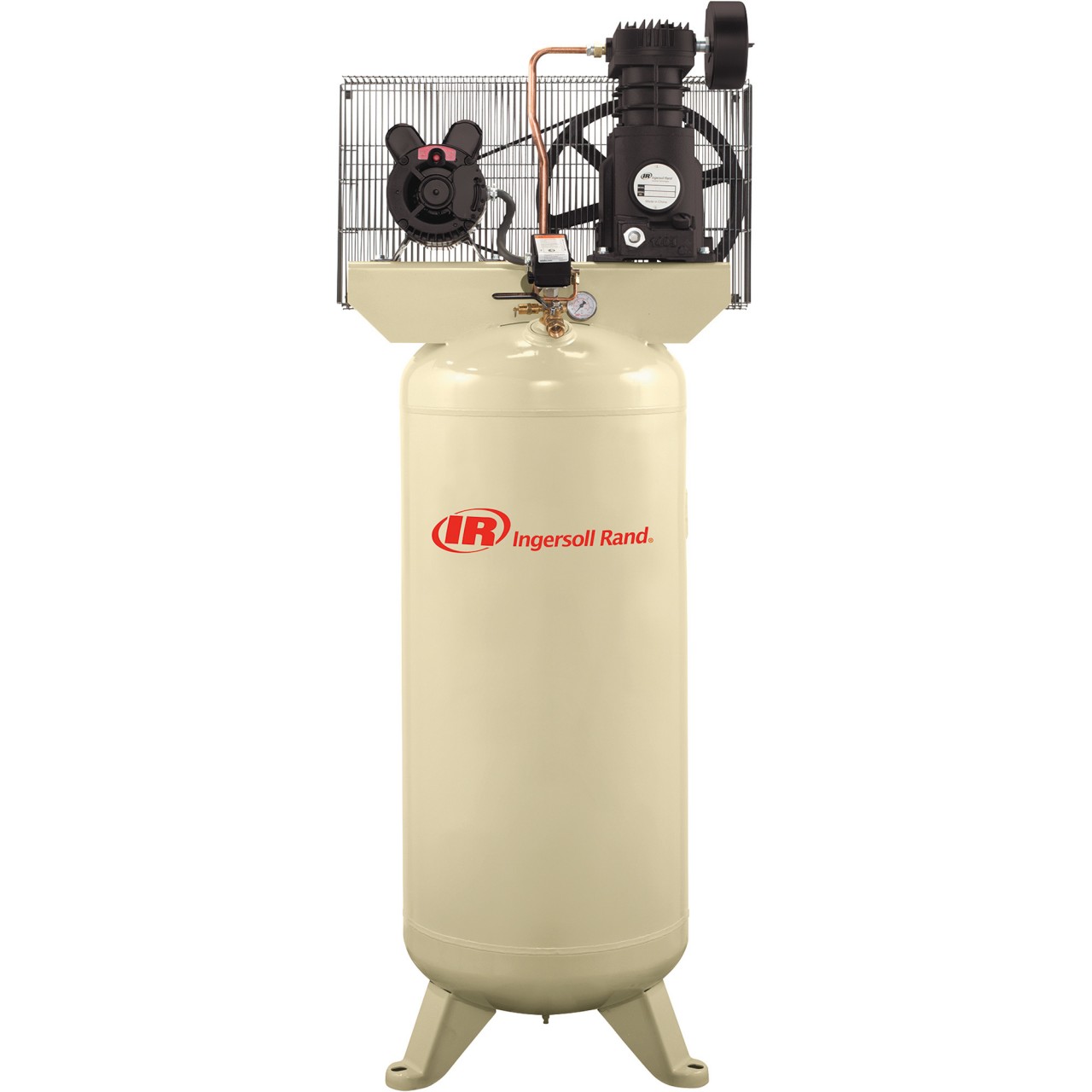

Ingersoll Rand Electric Stationary Air Compressor — 5 HP, 230 Volt, 1-Phase, 60-Gallon Vertical, Model# SS5L5
Price:
$579
Brand:
Condition:
New
Availability:
Ready Stock
Shipping:
Calculated at checkout
Product Description
- Motor: 5.0 HP/11.5 Peak HP - single phase motor
- 100% cast iron cylinder
- Belt guard shields flywheel and motor sheave
- 100% continuous duty
- 3,450 RPM motor
Product Summary
Designed for the professional, single-stage air compressors are ideal for most anyone, from the do-it-yourselfer to the professional air compressor user. Maximum air power and more delivered air (CFM) providing the power to do the job right and in less time. Durable cast iron construction with precision engineered quality components. Warranty on the pump extends to 2 years with the use of appropriate maintenance kit (see below).
Features + Benefits
- Motor: 5.0 HP/11.5 Peak HP - single phase motor
- 100% cast iron cylinder
- Belt guard shields flywheel and motor sheave
- 100% continuous duty
- 3,450 RPM motor
- 950 RPM pump
- 78 dB sound level
- Tank includes drain, relief and discharge valves
- Meets OSHA standards
- Drain System: Manual Drain
- Maintenance Kit: 15920088 (sold separately)
Key Specs
| Item# | 1592047 |
| Brand | Ingersoll Rand |
| Manufacturer's Warranty | 12 months parts / 12 months labor |
| Ship Weight | 450.0 lbs |
| HP | 5 |
| Stage | Single |
| Max. PSI | 135 |
| Air Tank Size (gal.) | 60 |
| CFM at 90 PSI | 18.1 |
| CFM at Max. PSI | 15.5 |
| Air Outlet Size (in.) | 1/2 |
| Duty Cycle | 100% |
| Tank Fill Time (min.) | 4 3/4 |
| Motor Phase(s) | Single |
| Oil Required | Yes |
| Lubrication System | Splash |
| Amps | 21.5 |
| Volts | 230 |
| Motor RPM | 3,450 |
| Drain System | Manual |
| Pump Life (hrs.) | 5,000 |
| Pump Material | Cast iron |
| Noise Level (dB) | 78 |
| Dimensions L x W x H (in.) | 20 x 30 x 71 |
