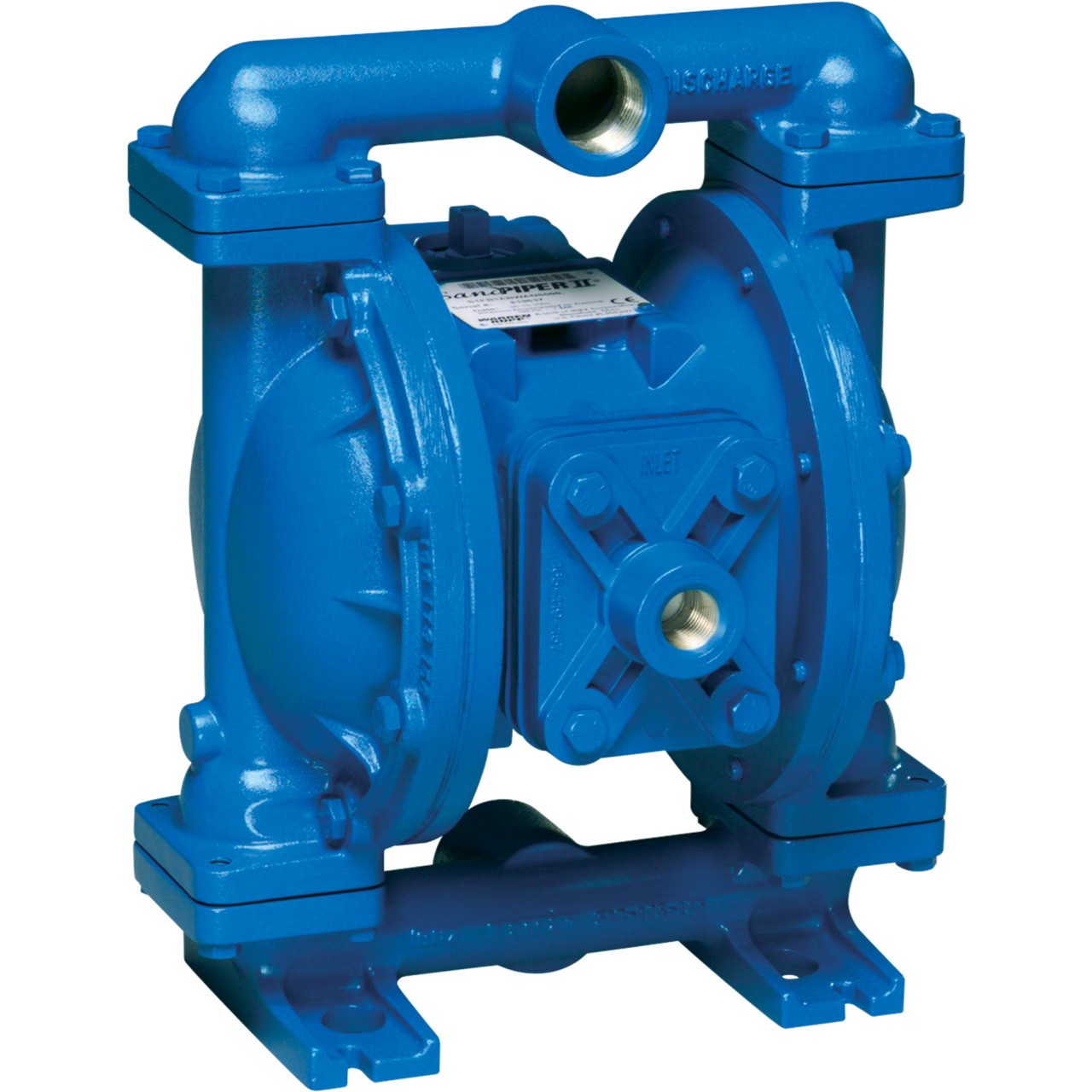

Sandpiper Air-Operated Double Diaphragm Oil Pump 1in. Inlet, 45 GPM, Aluminum/Buna, Model# S1FB1ABWANS000

  • Image 1
Price:
$376
Brand:
Condition:
New
Availability:
Ready Stock
Shipping:
Calculated at checkout
Quantity:


Product Description

  • Units designed for fuels and flammable solvents include ground capability to eliminate static discharge
  • Whetted parts material: Aluminum/Buna
  • Rated for service of typical fluids: Oil and automatic transmission fluid, petroleum-based oil products
  • Use inline filter regulator Item# 156440 or 1594016 with 1/2in. air inlet

Product Summary

This Sandpiper double diaphragm pump features an externally serviceable air distribution system and all-bolted construction. Self-priming pumps can run dry without damage and are capable of deadheading against a closed discharge, eliminating the need for bypass or pressure relief valves. Seal-less design and corrosion-resistant materials make the pumps ideal for solids handling and high-suction lift applications such as transferring antifreeze, ATF, light viscosity petroleum and synthetic-based oil and waste oils. NOTE: Use inline filter regulator Item# 156440 or 1594016 with 1/2in. air inlet.



Features + Benefits

  • Units designed for fuels and flammable solvents include ground capability to eliminate static discharge
  • Whetted parts material: Aluminum/Buna
  • Rated for service of typical fluids: Oil and automatic transmission fluid, petroleum-based oil products
  • Use inline filter regulator Item# 156440 or 1594016 with 1/2in. air inlet
Key Specs
Item# 109715
Brand Sandpiper
Manufacturer's Warranty 5 year limited warranty
Ship Weight 25.36 lbs
Flow (GPM) 45
Average Air Consumption (CFM) 48
Max. PSI 100
Air Inlet Size (in. NPT) 1/2
Inlet Port (in.) 1
Outlet Port (in.) 1
Max. Suspended Solids (in.) 1/4
Dimensions L x W x H (in.) 7 x 10 x 13
