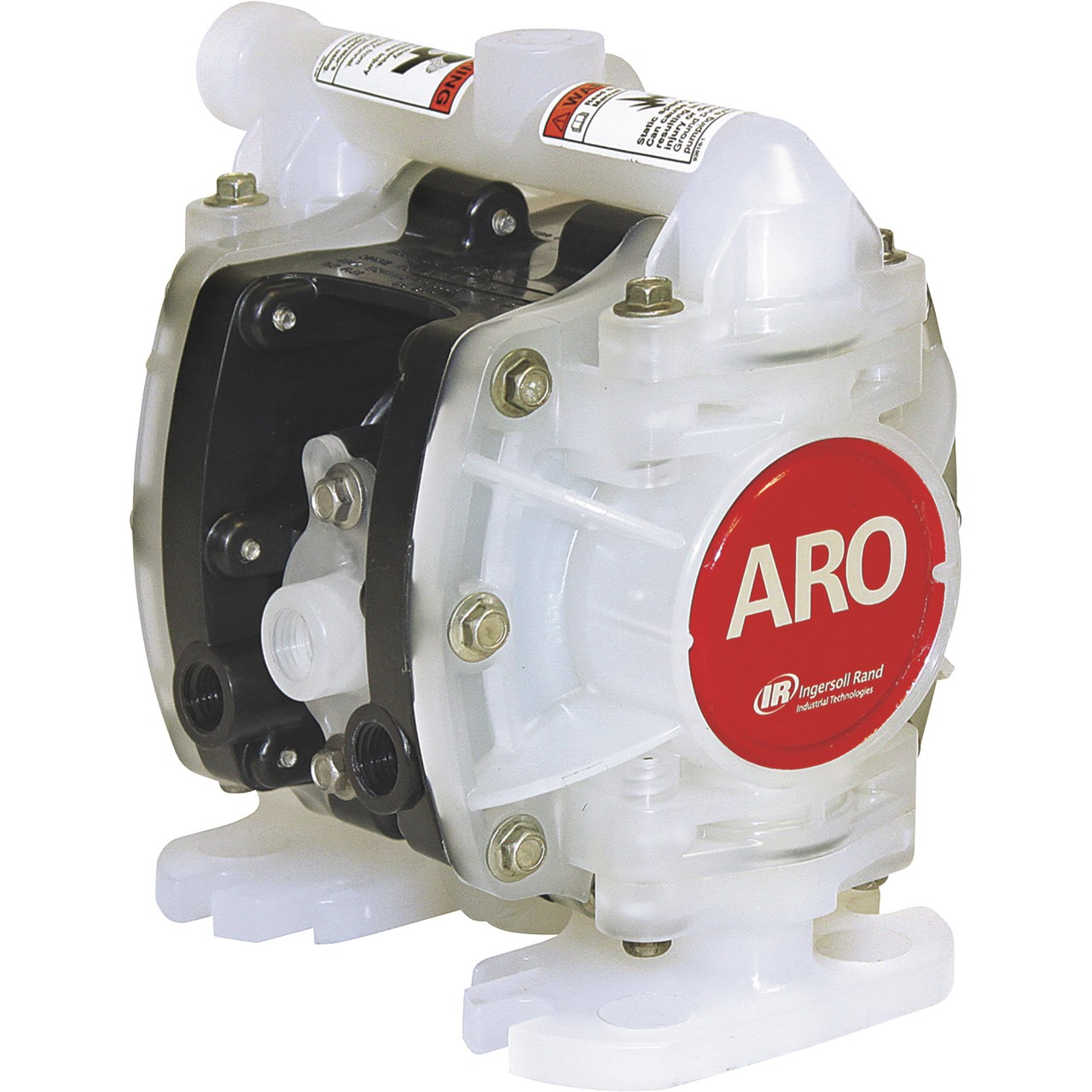

ARO Air-Operated Double Diaphragm DEF Pump — 1/4in. Ports, 5.3 GPM, Polypropylene/PTFE, Model# PD01P-HPS-PTT-A

Home
Air Operated Oil Pumps
ARO Air - Operated Double Diaphragm DEF Pump 1/4in. Ports, 5.3 GPM, Polypropylene/PTFE, Model# PD01P-HPS-PTT-A

ARO Air - Operated Double Diaphragm DEF Pump 1/4in. Ports, 5.3 GPM, Polypropylene/PTFE, Model# PD01P-HPS-PTT-A

Price:

$141

Brand:

Ingersoll Rand

Condition:

New

Availability:

Ready Stock

Shipping:

Calculated at checkout

Product Description

Air-operated double diaphragm pump features polypropylene construction
Maximized flow rates, minimized pulsation and air consumption
Environmentally sound with bolted construction provides maximum chemical and leak resistance
1/4in. NPT/BSP female threaded ports and 3/4in. NPT external threaded ports for added versatility
Rated for typical fluids: DEF applications, agricultural chemicals

Product Summary

The ARO Air-Operated Double Diaphragm DEF Pump features a compact design that enables usage in a variety of locations, including limited space. "Unbalanced" valve design eliminates valve centering and pump stall-out. Simul-Shift valve provides ultra-positive, reliable shift signal for maximum efficiency.

What's Included

(1) 1:1 diaphragm pump
(1) Operation/maintenance manuals

Features + Benefits

Air-operated double diaphragm pump features polypropylene construction
Maximized flow rates, minimized pulsation and air consumption
Environmentally sound with bolted construction provides maximum chemical and leak resistance
1/4in. NPT/BSP female threaded ports and 3/4in. NPT external threaded ports for added versatility

Rated for typical fluids: DEF applications, agricultural chemicals
1/4in. NPT ports with PTFE ball checks and diaphragms
5.3 GPM

Key Specs

Item#	59737
Brand	Ingersoll Rand
Manufacturer's Warranty	5 year limited warranty
Ship Weight	5.0 lbs
Flow (GPM)	5.3
Average Air Consumption (CFM)	4
Operating PSI	10–125
Max. PSI	125

Air Inlet Size (in. NPT)	1/4
Inlet Port (in.)	1/4
Outlet Port (in.)	1/4
Gear Ratio	1:1
Max. Fluid Temp. (°F)	225
Max. Suspended Solids (in.)	1/16
Dimensions L x W x H (in.)	7 1/2 x 5 x 7
