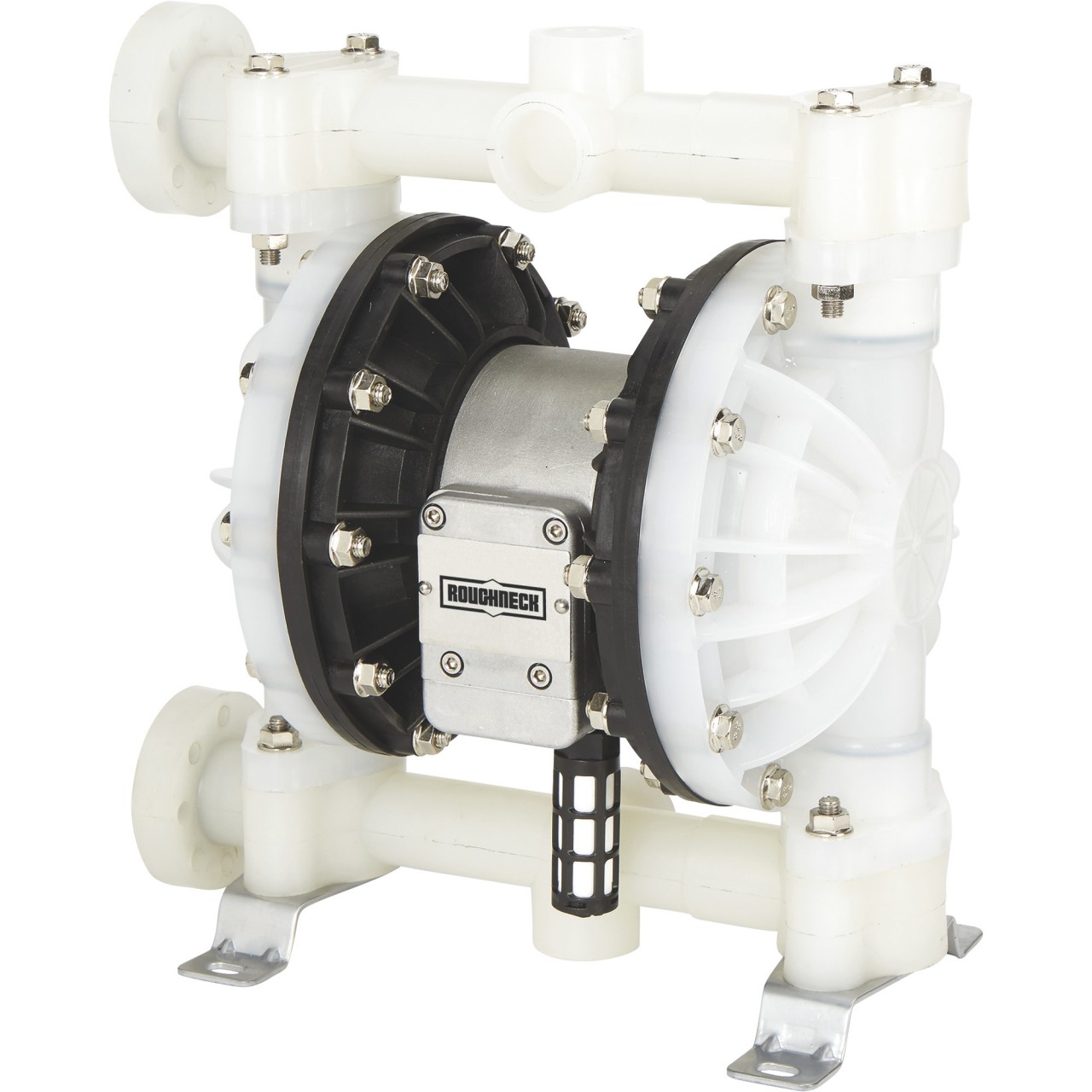

Roughneck Air-Operated Double Diaphragm Pump 1in. Ports, 24 GPM, Polypropylene

Roughneck Air-Operated Double Diaphragm Pump 1in. Ports, 24 GPM, Polypropylene

Price:

$174

Brand:

Roughneck

Condition:

New

Availability:

Ready Stock

Shipping:

Calculated at checkout

Product Description

1in. inlet and outlet ports
Flow rate up to 24 GPM
Externally serviceable air distribution system and all-bolted construction
Handles 1/8in. max. suspended solids
164ft. max. head and 10ft. max. suction height

Product Summary

The Roughneck® Air-Operated Double Diaphragm Pump features an externally serviceable air distribution system and all-bolted construction. Polypropylene pump body. Features 164ft. max head and 10ft. max. suction height. Ideal for pumping diesel fuel, grease, kerosene and oil.

What's Included

(1) Air-operated double diaphragm pump

Features + Benefits

1in. inlet and outlet ports
Flow rate up to 24 GPM
Externally serviceable air distribution system and all-bolted construction
Handles 1/8in. max. suspended solids

164ft. max. head and 10ft. max. suction height
115 max. PSI operating pressure
1/4in. air inlet
Not for use with gasoline

Key Specs

Item#	58242
Brand	Roughneck
Manufacturer's Warranty	12 months limited parts / No labor
Ship Weight	22.0 lbs
Flow (GPM)	24
Average Air Consumption (CFM)	10.6
Operating PSI	29–115
Max. PSI	115

Air Inlet Size (in. NPT)	1/4
Inlet Port (in.)	1
Outlet Port (in.)	1
Max. Fluid Temp. (°F)	140
Max. Suspended Solids (in.)	1/8
Dimensions L x W x H (in.)	11 x 8 3/4 x 13
