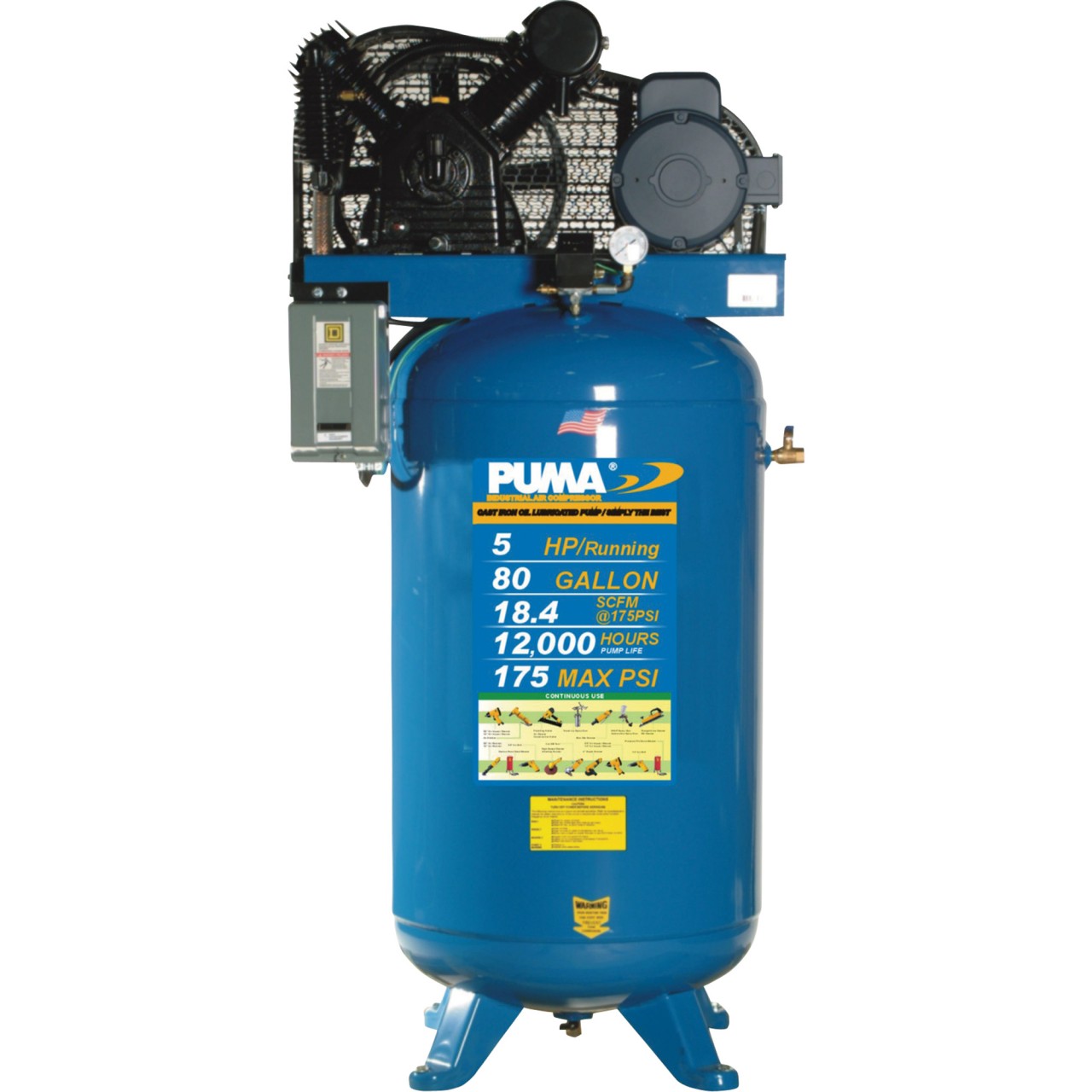

Puma Belt-Drive Stationary Vertical Air Compressor, 80-Gallon Vertical, 5 HP, 18.4 CFM, Model# TN5080VM
Product Description
- Durable cast iron oil-lubricated pump for long life and no heat transfer between cylinders
- Dual-stage pump is efficient at 100–175 PSI
- Copper finned inter- and after-coolers provide good heat dissipation and less moisture
- Reed valves are made of heat-resistant alloy steel supplied from Sweden ASSAB
- Valves are specifically designed for maximum efficiency
Product Summary
Heavy-duty Puma 80-Gallon, 5 HP compressor is built with a cast iron belt-driven oil-lubricated 2-cylinder dual-stage pump to run quietly and deliver long pump life. ASME-certified vertical tank has gate valve to allow downstream air to be shut off.
Features + Benefits
- Durable cast iron oil-lubricated pump for long life and no heat transfer between cylinders
- Dual-stage pump is efficient at 100–175 PSI
- Copper finned inter- and after-coolers provide good heat dissipation and less moisture
- Reed valves are made of heat-resistant alloy steel supplied from Sweden ASSAB
- Valves are specifically designed for maximum efficiency
- 20,000-hour bearing life
- Double ringed-style piston for very low oil consumption and longer head life
- Durable alloy rods
- Spherodal graphite cast iron crankshafts for maximum strength
- Ball bearings on each side of crankshaft for smooth running and durability
- Heavy-duty paper element filters keep cylinder heads clean
- Durable metal belt guard won't break
- Oil sight gauge for easy visual oil checks
- ASME-certified tank is ready for use in commercial shops
- Rebuildable pump rod inserts and replaceable valves for extra-long pump life
Key Specs
| Item# | 305178 |
| Brand | Puma |
| Manufacturer's Warranty | 12 months parts / 12 months labor |
| Ship Weight | 550.0 lbs |
| Volts | 208/230 |
| Max. PSI | 175 |
| Pump Life (hrs.) | 12,000 |
| Air Tank Size (gal.) | 80 |
| Air Outlet Size (in.) | 1/2 |
| Duty Cycle | 100% |
| Working Pressure (PSI) | 100–175 |
| Stage | 2 |
| Motor Phase(s) | Single |
| Oil Required | Yes |
| HP | 5 |
| Amps | 22 |
| Motor RPM | 1,740 |
| Drain System | Manual |
| Pump Material | Cast iron |
| Dimensions L x W x H (in.) | 24 x 38 x 73 |
