- Heavy-duty 1.7 HP, 15 Amp 120V electric motor
- High performance oil-free pump provides 225 max. PSI for more operating power and longer air tool run times
- Delivers power and performance of a larger compressor in a compact size
- 15-gallon ASME certified vertical tank meets all safety requirements
- Super low voltage start capable (45V) for use with extension cords and in low voltage situations

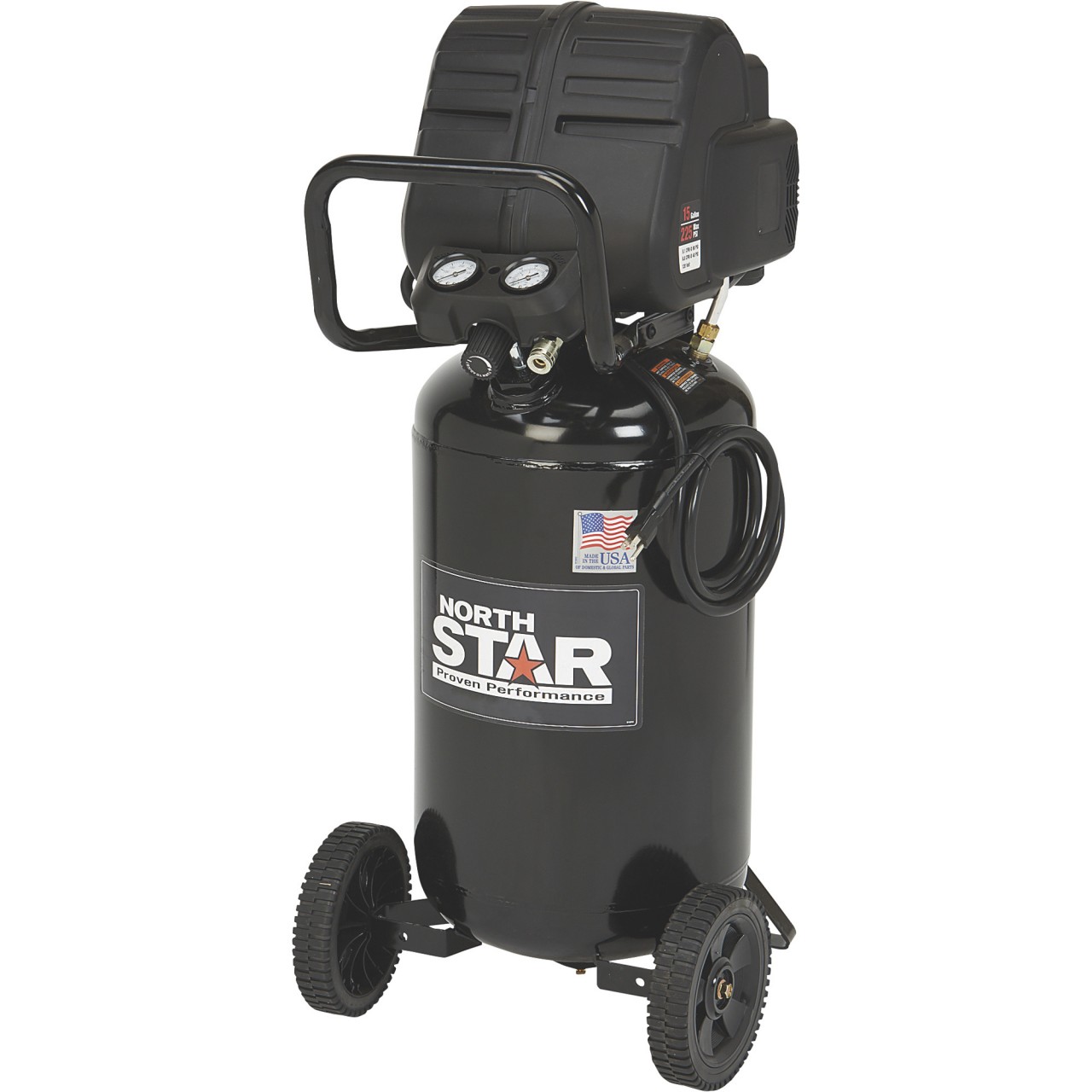

This high-quality NorthStar® 15-Gallon Portable Electric Air Compressor delivers the power and performance of a larger compressor in a compact portable size. High pressure unit operates at 225 max. PSI (75 PSI higher than competitors) to deliver more operating power and longer tool run times to users. High performance, low maintenance oil-free pump provides cleaner air for tools and is durable. Powered by a 1.7 HP, 15 Amp 120V electric motor. Compressor is 45V start capable, so you can power with an extension cord and use in low voltage situations. Fully transportable and can be laid down in a truck or van, unlike oil bath compressors, for contractors on the go. Convenient control panel puts gauges, regulator and 1/4in. quick connectors at your fingertips. Rolls on 8in. no-flat wheels for easy portability. Made in U.S.A.
What's Included
- (1) 15-gallon portable air compressor
- (2) 8in. no-flat wheels
- Heavy-duty 1.7 HP, 15 Amp 120V electric motor
- High performance oil-free pump provides 225 max. PSI for more operating power and longer air tool run times
- Delivers power and performance of a larger compressor in a compact size
- 15-gallon ASME certified vertical tank meets all safety requirements
- Super low voltage start capable (45V) for use with extension cords and in low voltage situations
- 8in. no-flat wheels for easy portability
- Low maintenance oil-free pump provides cleaner air for tools
- Fully transportable and can be laid down in a truck or van, unlike oil bath compressors
- Convenient controls put gauges, regulator and quick connect at your fingertips
- 1/4in. quick connectors for easy tool changes
- 78dB noise level for quieter operation
- 20 SCFM high flow regulator provides maximum air flow to your tools
| Item# |
76136 |
| Brand |
NorthStar |
| Manufacturer's Warranty |
1 year Limited Warranty |
| Ship Weight |
99.0 lbs |
| Max. PSI |
225 |
| Air Tank Size (gal.) |
15 |
| CFM at 90 PSI |
5.1 |
| CFM at 40 PSI |
6.8 |
| CFM at Max. PSI |
2.7 |
| Air Outlet Size (in.) |
1/4 |
| Air Outlets (qty.) |
1 |
| Quick-Connect Outlets |
1 |
| Duty Cycle |
50% |
| Working Pressure (PSI) |
225 |
| Tank Fill Time (min.) |
6 3/4 |
| Regulator Included |
Yes |
| Tank Type |
Vertical |
| Drive |
Direct |
| Oil Required |
No |
| HP |
1.7 |
| Amps |
15 |
| Volts |
120 |
| Motor RPM |
10,000 |
| Drain System |
Petcock |
| Pump Life (hrs.) |
500 |
| Pump Material |
Aluminum |
| Noise Level (dB) |
78 |
| Dimensions L x W x H (in.) |
24 1/2 x 20 x 44 3/4 |
| Weight (lbs.) |
99 |
| Product Weight (lbs.) |
99 |
