- Durable cast iron oil-lubricated pump has one-piece cast iron crankcase and full cast iron cylinder body
- Durable Swedish stainless steel reed valves deliver long service life
- 2-cylinder design for low heat transfer between cylinders
- Heavy-duty 230V induction motor runs at 3,450 RPM for maximum performance and efficiency
- 60-gallon ASME certified vertical tank provides more air for longer run times on air tools such as ratchets, impact wrenches, spray guns, hammers and more

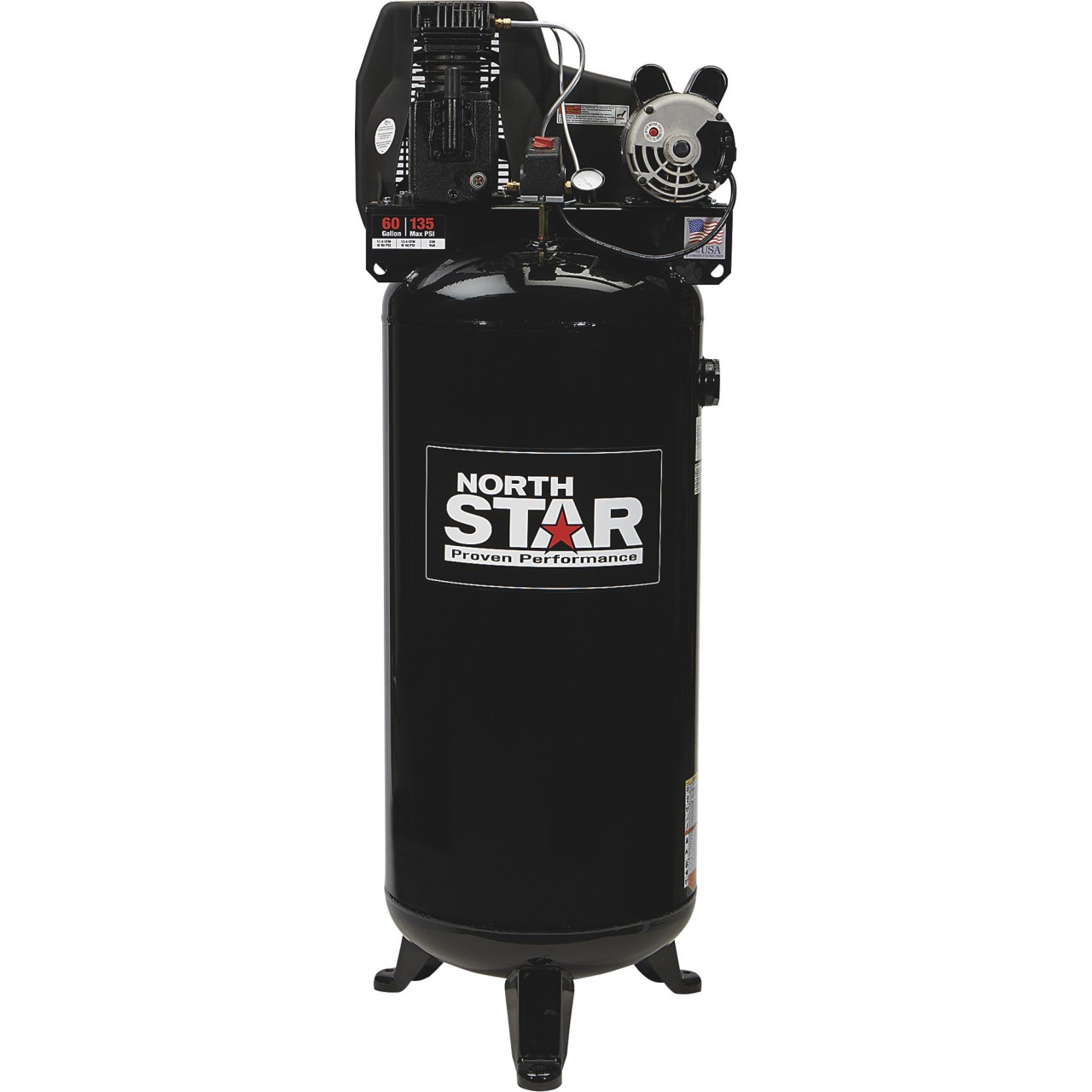

The NorthStar® 3.7 HP, 60-Gallon Electric Air Compressor is built with a heavy-duty 230V induction motor for maximum performance and efficiency. One-piece cast iron oil-lubricated pump with durable Swedish stainless steel reed valves delivers long service life. Its 2-cylinder design offers low heat transfer between cylinders. Large 60-gallon ASME air tank provides more air for longer run times on air tools. This compressor is made for mechanical shops, livestock operations and service truck applications, with heavy-duty components built to last under the most demanding conditions.
- Durable cast iron oil-lubricated pump has one-piece cast iron crankcase and full cast iron cylinder body
- Durable Swedish stainless steel reed valves deliver long service life
- 2-cylinder design for low heat transfer between cylinders
- Heavy-duty 230V induction motor runs at 3,450 RPM for maximum performance and efficiency
- 60-gallon ASME certified vertical tank provides more air for longer run times on air tools such as ratchets, impact wrenches, spray guns, hammers and more
- Pump runs at 920 RPM
- Oil sight gauge for easy visual oil checks
- 12in. cast iron balanced flywheel
- Aluminum head and valve plate
- Automotive style ball bearings
- 135 max. PSI air pressure for optimum tool performance
- Large 3/4in. air outlet port
- Equipped with pressure gauge and on/off switch
- Shipped with synthetic oil for top performance and long life
| Item# |
75711 |
| Brand |
NorthStar |
| Manufacturer's Warranty |
4 Yr Consumer/2 Yr Commercial |
| Ship Weight |
228.0 lbs |
| HP |
3.7 |
| Stage |
Single |
| Max. PSI |
135 |
| Air Tank Size (gal.) |
60 |
| CFM at 90 PSI |
11.5 |
| CFM at 40 PSI |
13.4 |
| Air Outlet Size (in.) |
3/4 NPT |
| Air Outlets (qty.) |
1 |
| Duty Cycle |
75% |
| Working Pressure (PSI) |
105–135 |
| Tank Fill Time (min.) |
6.3 |
| Regulator Included |
No |
| Motor Phase(s) |
Single |
| Oil Required |
Yes |
| Low Oil Shutdown |
No |
| Lubrication System |
Oil |
| Amps |
15 |
| Volts |
230 |
| Motor RPM |
3,450 |
| Drain System |
Petcock |
| Pump Life (hrs.) |
1,500 |
| Pump Material |
Cast iron |
| Noise Level (dB) |
80 |
| Dimensions L x W x H (in.) |
31 x 27 x 70 |
| Weight (lbs.) |
247 |
