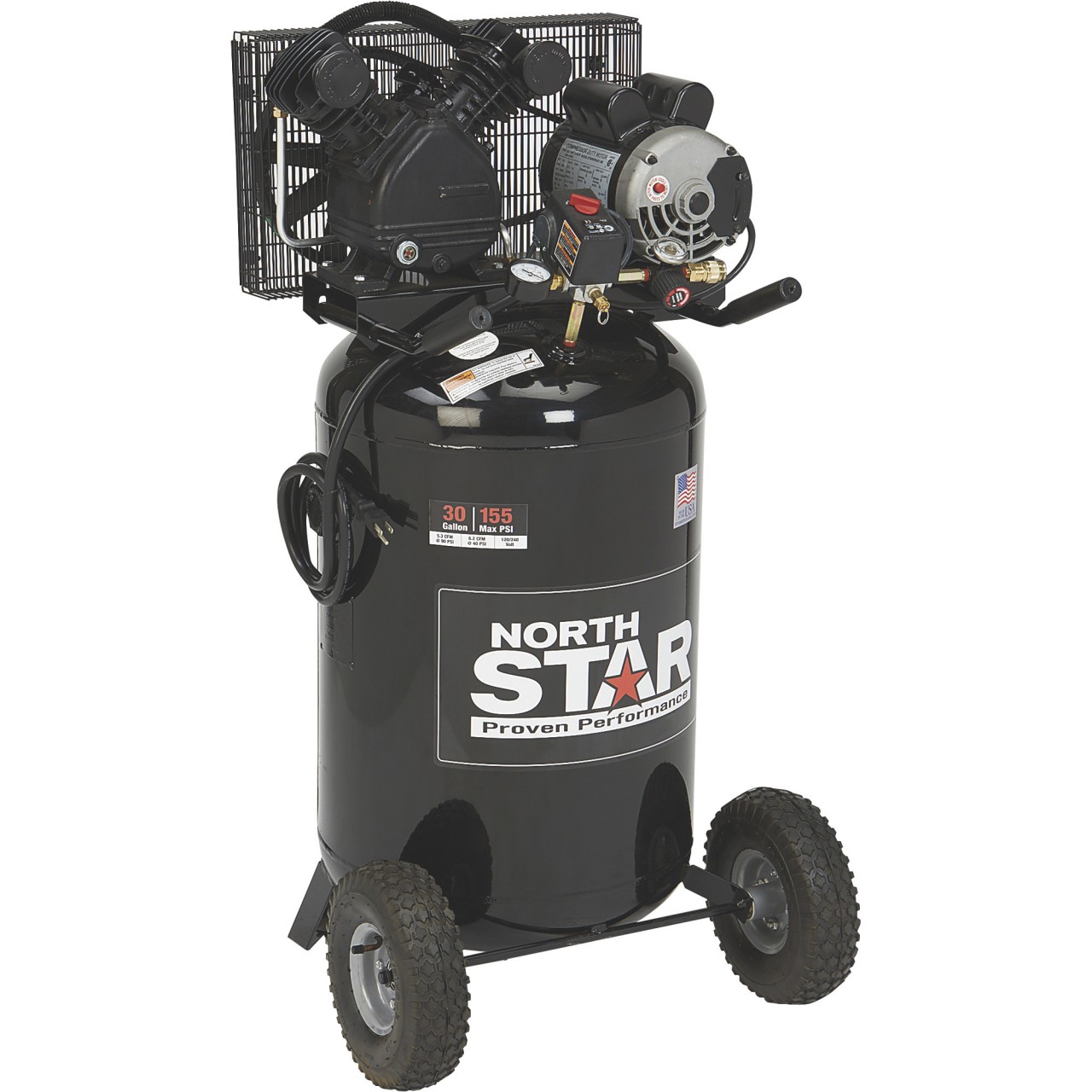

NorthStar Portable Electric Air Compressor 1.6 HP, 30-Gallon Vertical, 5.3 CFM
Price:
$200
Brand:
Condition:
New
Availability:
Ready Stock
Shipping:
Calculated at checkout
Product Description
- Heavy-duty 1.6 HP, 15 Amp induction motor for maximum performance and efficiency
- Durable cast iron V-twin pump provides good heat dissipation and no transfer of heat between cylinders
- Belt drive oil-lubricated pump runs quietly and delivers long pump life
- 30-gallon vertical tank is ASME certified
- 10in. pneumatic wheels for easy portability
Product Summary
The NorthStar® 30-Gallon Portable Electric Air Compressor is powered by a heavy-duty 1.6 HP induction motor for maximum performance and efficiency. Cast iron oil-lubricated V-twin pump provides good heat dissipation and no transfer of heat between cylinders for long service life. Versatile dual voltage motor is wired for standard 120V outlets but can be converted to 240V applications. 30-gallon vertical tank is ASME certified. Equipped with 10in. pneumatic wheels for easy portability. Made in U.S.A.
What's Included
- (1) 30-gallon portable air compressor
- (2) 10in. pneumatic wheels
Features + Benefits
- Heavy-duty 1.6 HP, 15 Amp induction motor for maximum performance and efficiency
- Durable cast iron V-twin pump provides good heat dissipation and no transfer of heat between cylinders
- Belt drive oil-lubricated pump runs quietly and delivers long pump life
- 30-gallon vertical tank is ASME certified
- 10in. pneumatic wheels for easy portability
- Dual voltage motor is wired for standard 120V outlets but can be converted to 240V applications
- Convenient controls put gauges, regulator and quick connect at your fingertips
- 1/4in. quick connectors for easy tool changes
- Quiet 77dB operation
- 155 max. PSI for optimum tool performance
- Durable stainless steel reed valves
- Oil level sight glass
- Automotive style ball bearings
- 10in. cast iron balanced flywheel
- One-piece cast iron crankcase
- Thermally stable cast iron cylinder body
- Aluminum head and machined cast iron valve plate
Key Specs
| Item# | 75859 |
| Brand | NorthStar |
| Manufacturer's Warranty | 4 Yr Consumer/2 Yr Commercial |
| Ship Weight | 171.0 lbs |
| Max. PSI | 155 |
| Air Tank Size (gal.) | 30 |
| CFM at 90 PSI | 5.3 |
| CFM at 40 PSI | 6.2 |
| Air Outlet Size (in.) | 1/4 NPT |
| Air Outlets (qty.) | 1 |
| Quick-Connect Outlets | 1 |
| Duty Cycle | 75% |
| Working Pressure (PSI) | 125–155 |
| Tank Fill Time (min.) | 8.2 |
| Regulator Included | Yes |
| Tank Type | Vertical |
| Drive | Belt |
| Oil Required | Yes |
| HP | 1.6 |
| Amps | 15 |
| Volts | 120/240 |
| Motor RPM | 3,450 |
| Drain System | Petcock |
| Pump Life (hrs.) | 1,500 |
| Pump Material | Cast iron |
| Noise Level (dB) | 76 |
| Dimensions L x W x H (in.) | 26 x 24 1/2 x 52 |
| Product Weight (lbs.) | 171 |
